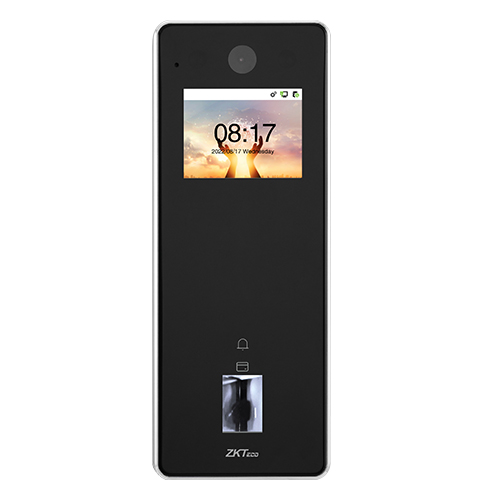

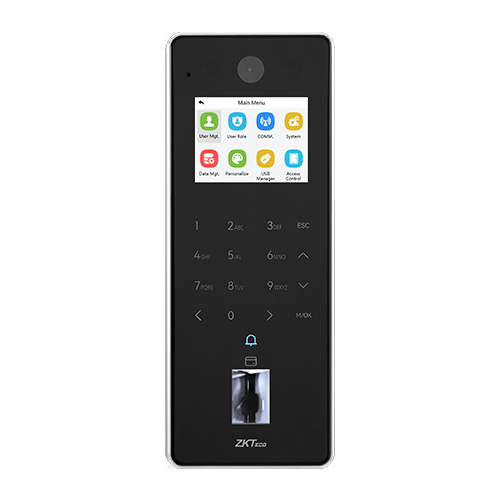

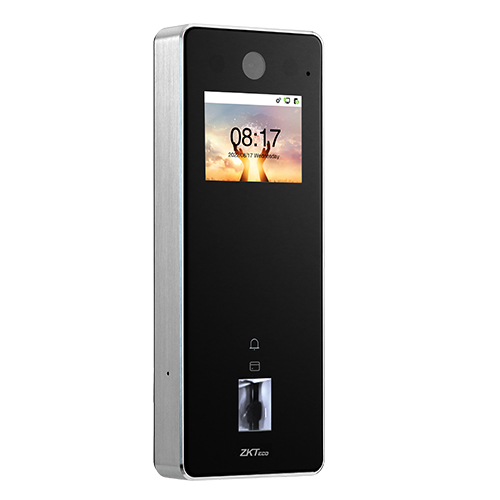

ZKTeco F35 Standalone Access Control Terminal & Video Intercom

Specifications
Model
F35
Display
2.4″@ TFT Color LCD Screen (720*1280)
Camera
Camera @ 2MP
Fingerprint
Recognition
RFID Video Intercom
(SIP)
TCP/IP Wi-Fi IP65
Field of View
Diagonal: 145°, Horizontal: 118°, Vertical: 62°
Operation System
Linux
Hardware
CPU: 1.2GHz Dual Core
RAM: 256MB; ROM: 512MB
Speaker: 8ohms±20% @1.0W
Microphone: *1 (Sensitivity: -29 to -35 dB / Omni-directional / Signal-to-Noise Ratio: 58 dB /Impedance: 2.2 kΩ
Fingerprint Sensor: In-Glass Fingerprint (Z-ID)
Authentication method
Fingerprint / Card / Password (Physical Touch Keypad )
User Capacity
10,000 (1:N)
Card Capacity
10,000 (1:N)
Fingerprint Template Capacity
10,000 (1:N)
Transaction Capacity
500,000
Max. User Password Length
6 to 8 Digits
Biometric Verification Speed
less than 0.3 sec (Fingerprint)
False Acceptance Rate (FAR) %
FAR≦ 0.0001% (ZKFingerprint V10.0)
False Rejection Rate (FRR) %
FRR≦ 0.01% ; (ZKFingerprint V10.0)
Biometric Algorithm
ZKFingerprint V10.0
Card Type
ID Card@125 kHz (Standard)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)
Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Frequency)
Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency)
Module 4: ID & IC & DESFire Encrypted; (125 kHz & 13.56 MHz Dual Frequency)
Communication
TCP/IP*1
Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz
Wiegand (Input & Output)*1
RS485: ZKTeco RS485 *1
Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1,
Standard Functions
Webserver, ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input)
Optional Functions
ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Module: Module 1 / Module2 / Module3 /Module 4, Wireless Doorbell
Access Control Interface
RS485 (DM10 Controller 1 Door Expansion (Coming soon) / RS485 Card Reader / Fingerprint Reader)
Power Supply
DC 12V 3A
Operating Temperature
-5℃ to 55℃(23℉ to 131℉)
Operating Humidity
10% to 90% RH (Non-condensing)
Dimensions
195 mm*75 mm*25.35 mm (L*W*H)
Gross Weight
1.13 Kg
Net Weight
0.52 Kg
Supported Software
Software: ZKBio CVAccess / ZKBioTime
Mobile App: ZSmart
Installation
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box)
Housing Material
Aluminium Alloy
Ingress Protection Rating
IP65 (waterproof and dustproof)
IK04 (Vandal Resistant)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
