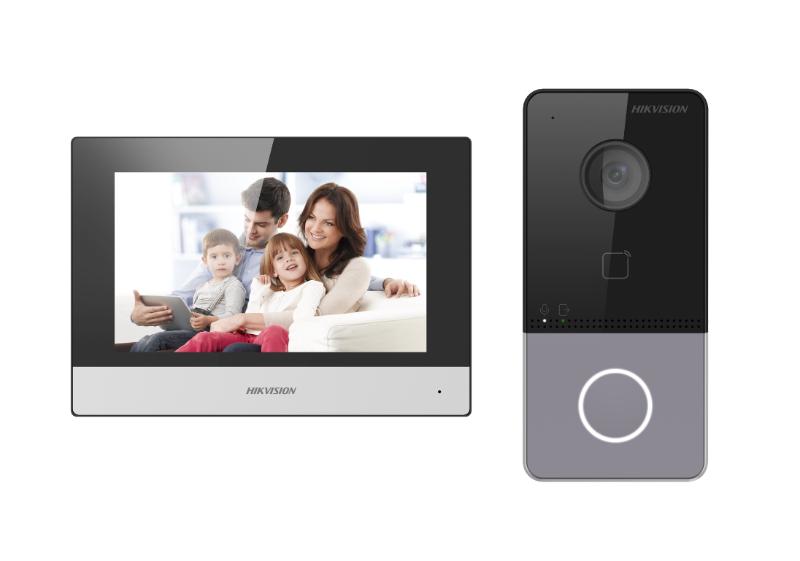

HIKVISION IP Video Intercom Kit
Original price was: ₨ 43,500.00.₨ 38,500.00Current price is: ₨ 38,500.00.
Model: DS-KIS603-p(B)
IP Video Intercom Kit
- IP video intercom kit for villa or house, only one call button;
- DS-KV6113-WPE1 x1;
- DS-KH6320-WTE1 x1;
- PSU x2;
Specifications:
Door station/System parameters
Operation systemEmbedded Linux operation system
Flash32 MB
RAM128 MB
Door station/Video parameters
Camera2MP HD camera
Night visionLow illumination IR supplement mode:3 m
Backlight compensationSupport
Digital noise reductionSupport
WDRTrue WDR
Field of viewHorizontal: 129° Vertical: 75°
Video Compression StandardH.264
StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
Motion detectionSupport
Flash-avoid frequency50 Hz, 60 Hz
Door station/Audio parameters
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio qualityNoise suppression and echo cancellation
Audio compression standardG.711 U
Audio compression Rate64 Kbps
Audio intercomTwo-way audio communication
Door station/Network parameters
Network protocolTCP/IP, RSTP
Wired network10/100 Mbps Ethernet
Door station/Device interfaces
RS-4851
Alarm input4
Debugging port1
Grounding1
TAMPER switch1
Door station/General
Power consumption＜ 10 W
Working temperature-40° C to 53° C(-40° F to 127.4° F)
Working humidity10% to 95%
Dimension138 mm × 65 mm × 27 mm
InstallationSurface mounting
Protection levelIP65
Indicator2
Power supply
IEEE802.3af, standard PoE
12 VDC
Indoor station/System parameters
Operation systemEmbedded Linux operation system
Memory128 MB
Flash32 MB
Indoor station/Display parameters
Display screen7-inch colorful TFT screen
Display resolution1024 × 600
Operation methodCapacitive touch screen
Indoor station/Audio parameters
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio qualityNoise suppression and echo cancellation
Audio compression standardG.711 U
Audio compression Rate64 Kbps
Indoor station/Network parameters
Wired network10/100 Mbps self-adaptive
Wireless networkWi-Fi 802.11 b/g/n
ProtocolTCP/IP, SIP, RTSP
RS-4851 RJ-45 10/100 Mbps self-adaptive
Indoor station/Device interfaces
RS-4851
Alarm input8-ch alarm inputs
Relay output2
TF cardMax to 32 G, SD 2.0 or lower version
Indoor station/General
Power consumption≤ 6 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 90%
Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
