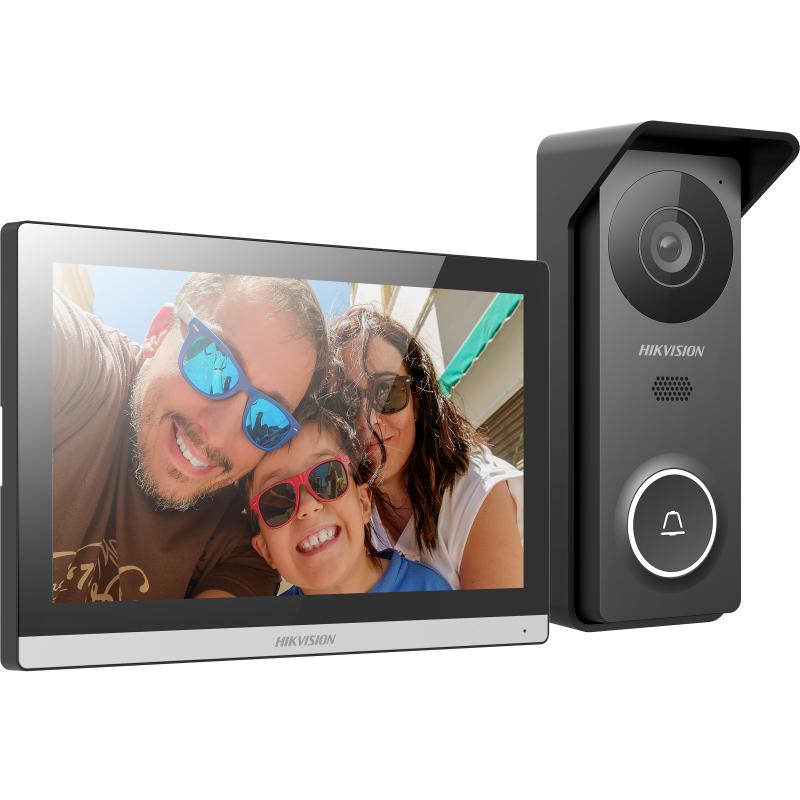

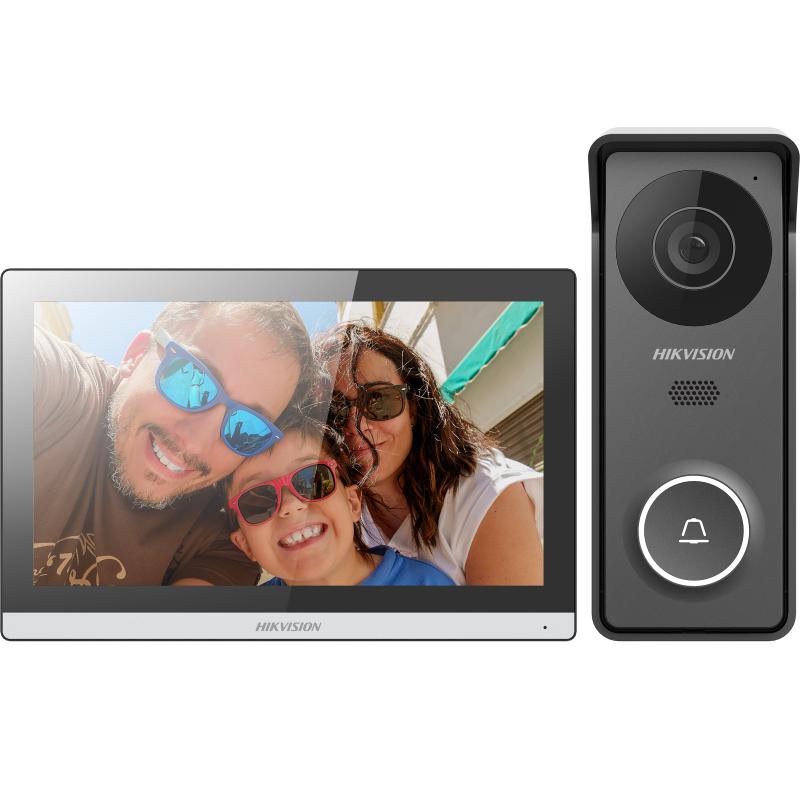

Hybrid HD Video Intercom Kit

Specification:

Door station/Video parameters

Supplement light; IR light, up to 3 m

Resolution Stream; resolution:1280 * 720@60fps

FOV; Horizontal: 117°, Vertical: 70°, Diagonal: 141°

Door station/Audio parameters

Audio input; 1 built-in omnidirectional microphone

Audio output; 1 built-in loudspeaker

Door station/Capacity parameters

Linked indoor station capacity: 3

Sub door station capacity: 1

Card capacity: /

Door station/Device interfaces

Lock control: 1 relay, max 30 V 1 A

Power supply input: 12 VDC

Debugging port: 1

Four-Wire interface: 1

Door station/General

Button: 1 physical button(s)

Indicator: /

Power supply: 12 VDC

Power consumption ≤ 4 W

Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)

Working humidity: 10% to 90% (no-condensing)

Application environment: Outdoor

Dimension (W × H × D): 55 mm × 145 mm × 24 mm (2.17″ × 5.71″ × 0.94″)

Installation: Surface mounting

Protective level: IP65, IK08

Material: Aluminum alloy and Plastic

Without package: 200 g (0.44 lb)

Indoor station/System parameters

Operation system: Embedded Linux operation system

RAM: 128 MB

ROM: 32 MB

Processor: Embedded high performance processor

Indoor station/Display parameters

Type: Colorful TFT

Resolution: 1024 × 600

Viewing Angle: Horizontal 160°, vertical 130°

Contrast: 700 (Typ)

Luminance: 250 cd/m² （Typ）

Operating method: Capacitive touch screen

Screen size: 7-inch

Indoor station/Audio parameters

Audio input: 1 built-in omnidirectional microphone

Audio output: 1 built-in loudspeaker

Audio compression bitrate: 64 Kps

Audio compression standard: G.711U, G.711A

Audio quality: Noise suppression and echo cancellation

Indoor station/Capacity parameters

Linked network camera capacity: /

Linked indoor extensions capacity: 2

Linked doorphone capacity: 2

Linked analog camera: 1

Indoor station/Network parameters

Wi-Fi: Wi-Fi 802.11 b/g/n

Indoor station/Device interfaces

Network interface: /

RS-485: /

Alarm input: 2

Alarm output: /

Power supply input: 12 VDC

TF card: Support TF card, up to 128 G

Debugging port: 2

Four-Wire interface: 4

Relay: /

Indoor station/General

Button: 0 physical button

Power supply: 12 VDC

Power consumption ≤ 5 W

Working temperature: -10 °C to 50 °C (14 °F to 122 °F)

Working humidity: 10% to 90% (no-condensing)

Dimension (W × H × D): 175 mm × 113.5 mm × 18.1 mm (6.89″ × 4.47″ × 0.71″)

Installation: Surface mounting

Application environment: Indoor

Without package: 260 g (0.573 lb)

Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
