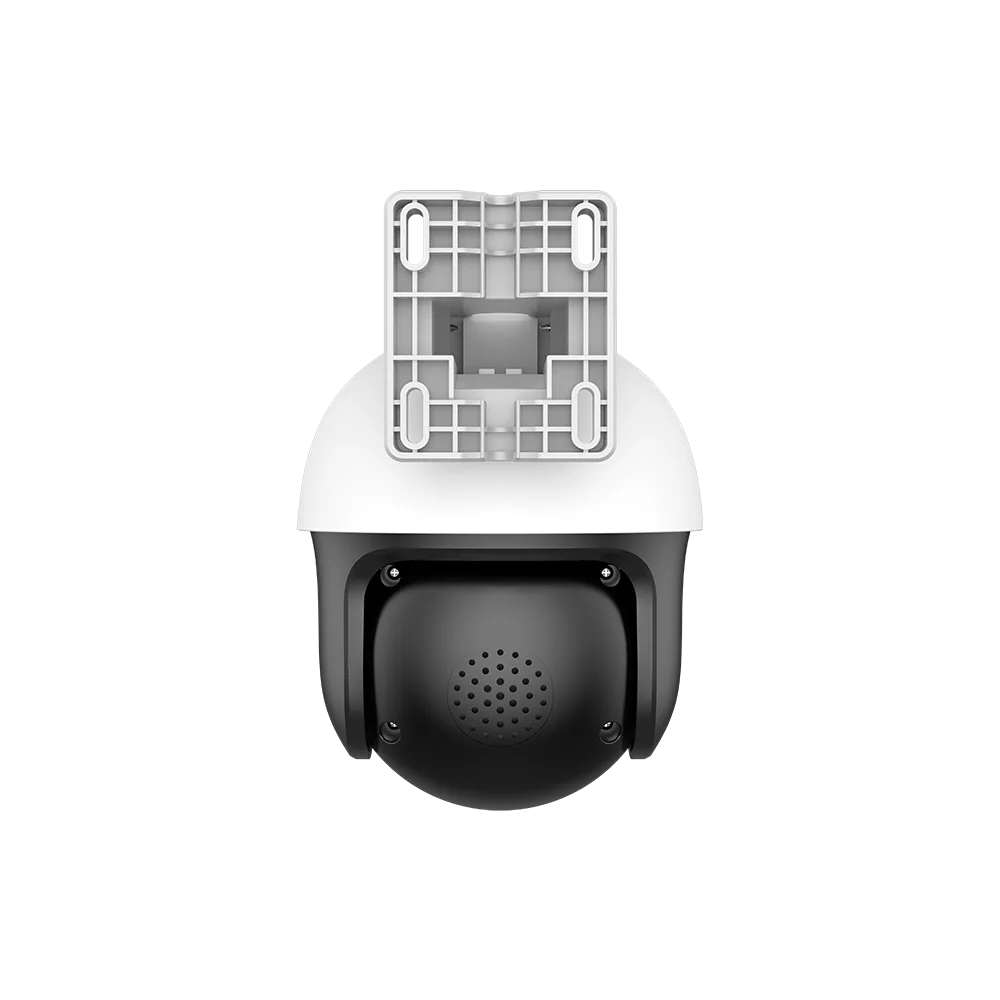

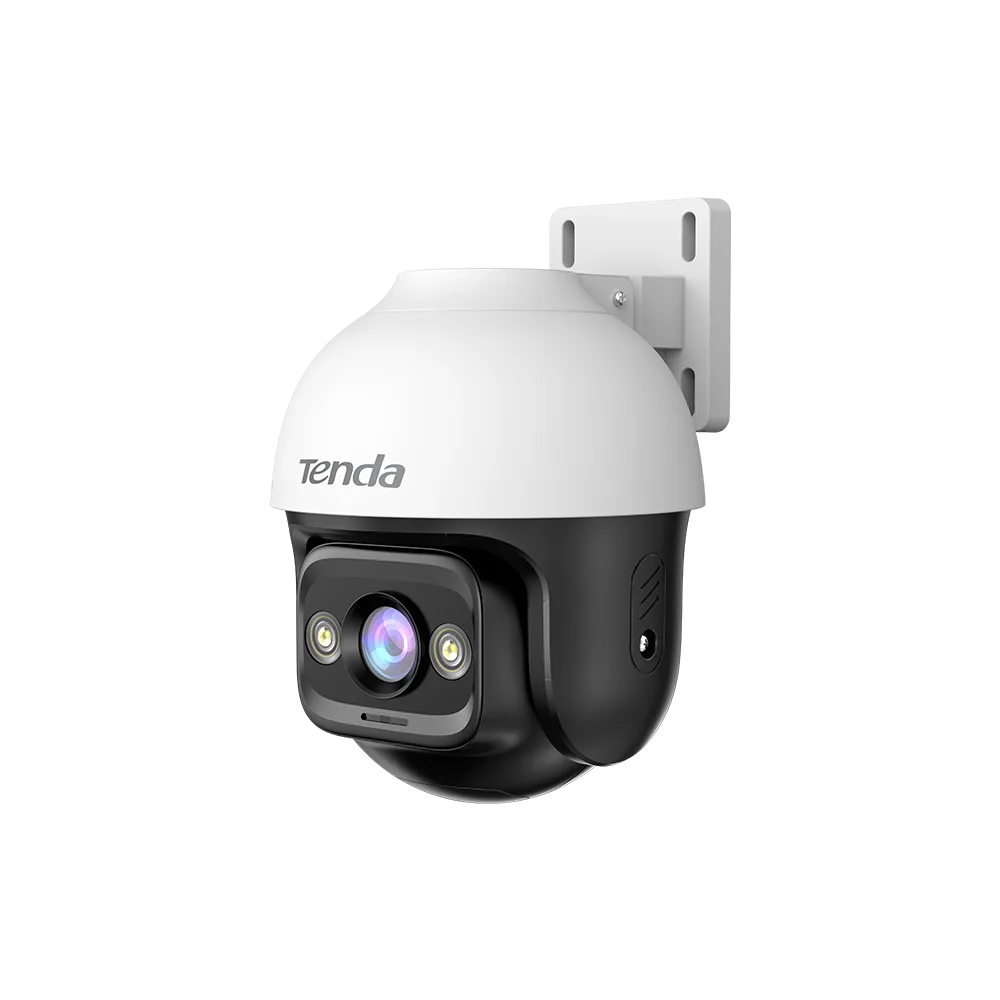

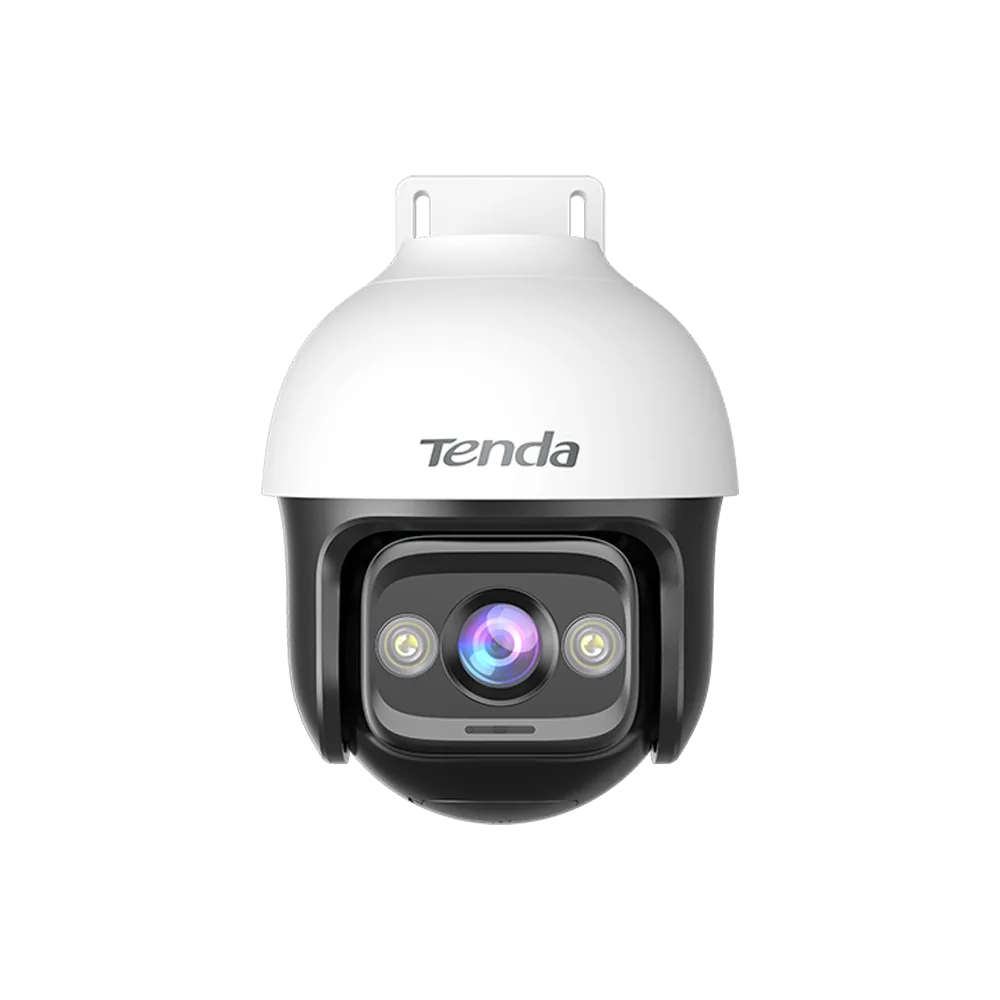

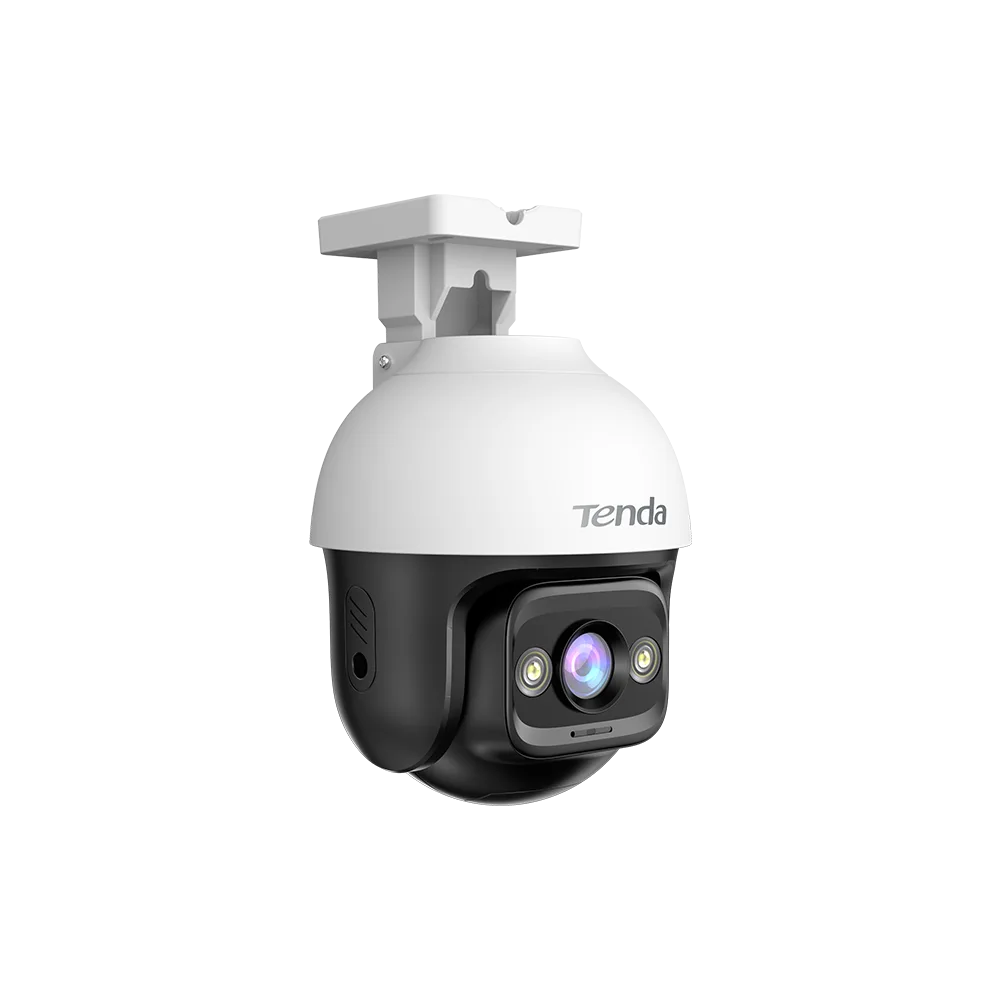

Tenda CH3-WCA 3MP Outdoor Wi-Fi Pan/Tilt Camera

Name: Tenda CH3-WCA 3MP Outdoor Wi-Fi Pan/Tilt Camera
Brand: Tenda
SKU: 30313
Price: 13400.00 PKR
Availability: InStock

Original price was: ₨ 14,200.00.Current price is: ₨ 13,400.00.

Model:CH3-WCA

3MP Outdoor Wi-Fi Pan/Tilt Camera

Water and dust resistant (IP65)
Support Wi-Fi 6
Built-in microphone and speaker for two-way audio
Support motion, human and vehicle detection, human tracking, sound and light alert
360° all-round high quality imaging with 3MP resolution and full-color night vision

The Outdoor Wi-Fi Pan/Tilt Camera CH3-WCA, is a high-performance outdoor surveillance camera that integrates 360° visual coverage, Wi-Fi6, Full-Color night vision, 3MP resolution video, full-duplex two-way audio, human detection, vehicle detection, sound and light alarm functions. The product is mostly used for outdoor monitoring scenarios such as courtyard, farms and shops, etc. The users can access the video via wireless or wired connection to the Internet.

Add to compare

Add to wishlist

Category: Wifi Camera

Description

Camera

Image Sensor

1/3 Progressive Scan CMOS sensor

Day and Night

ICR type
Lens

Focal Length

4 mm

Aperture

F1.6

FOV

Horizontal FOV: 83.3°, Vertical FOV: 53.1°, Diagonal FOV: 91°
Illuminator

Supplementary Light

2 IR Lights, 2 Spotlights

Supplementary Light Distance

Up to 30 m/100 ft (depending on environment)

IR Wavelength

850nm

Night Vision Mode

Smart Mode, Full Color Mode, Black & White Mode
Video

Video Encoding Format

H.265, H.264

Main Stream Resolution

2304 ×1296, 1920 × 1080, 1280 × 720

Sub Stream Resolution

640 × 360, 352 × 288

Frame Rate

1-30fps, Default 20fps

Bit Rate

512kbps — 4096kbps

Bit Rate Control

CBR,VBR
Audio

Audio Encoding Format

G.711A, G.711U, AAC

Audio Sampling Rate

8 kHz

Audio Communication

Two-way Audio, Voice Input

Image Enhancement

DWDR, BLC, HLC, 3D DNR

Privacy Mask

4 Areas
Network

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

ONVIF

Support

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

Web Browser

Plug-in free live view: Chrome, Edge, Opera
Pan&Tilt

Pan Movement Range

0°–355°

Tilt Movement Range

0°–90°

Preset

6

Patrol

Panoramic Patrol, Preset Patrol
Wi-Fi

Antenna

Internal antenna

Wireless Standard

IEEE 802.11 b/g/n/ax

Transmission Rate

Up to 287Mbps

Channel Width

20/40 MHz

Modulation

DSSS/OFDM/OFDMA

Frequency Band

2.4GHz: 2412MHz-2472MHz(CH1-CH13)

Transmit Power

2.4GHz: <0.1W(EIRP)

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Alarm

Smart Detection

Motion Detection, Tempering Detection, Human Detection, Vehicle Detection

Smart Linkage

Sound&light Alert, Human Tracking

DIY Audio

3 Customized Audios
Interface

Audio Input

Built-in MIC, adjustable microphone volume

Audio Output

Built-in Speaker, 79 dBA (Alarm sound at 1 meter), adjustable sound level

Storage

Built-in Micro SD Card Slot, Up to 512 GB

Reset Button

Support

LED Indicator

Dual Color (red & blue)
LED Indicator
General

Power

12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug

Material

Plastic

Smart Integration

Amazon Alexa

Product Dimension

120mm x 120mm x 146mm (4.7” × 4.7” × 5.7”)

Package Dimension

167 mm x 131 mm x 251 mm (6.6” × 5.2” × 9.9”)

Product Weight

367g (0.81lb)

With Package Weight

860g (1.89lb)

Protection Level

IP65

Installation Method

Wall Mounting, Ceiling Mounting, Pole Mounting

Certification

CE, RoHS, FCC, RCM, UKCA

Temperature

Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Humidity

Operating Humidity: 10% ~ 95% RH (non-condensing)
Storage Humidity: 3% ~ 95% RH (non-condensing)

Package Contents

Camera
Power Adapter (cord length: 3m)
Installation Template
Mounting Bracket
Mounting Accessories Kit
Waterproof Kit
Quick Installation Guide
