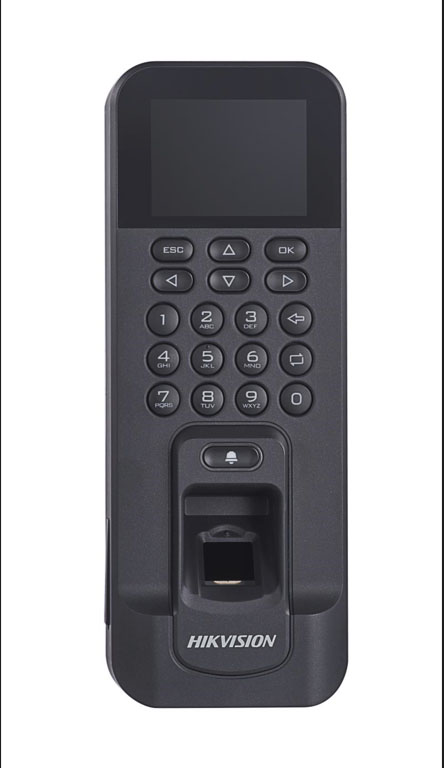

K1T804A Pro Series Fingerprint Terminal
Original price was: ₨ 25,800.00.₨ 22,500.00Current price is: ₨ 22,500.00.
- Integrated management of access control and the time and attendance functions
- 3,000 fingerprints, 3,000 cards and 100,000 events storage
- Built-in card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- Alarm input and output interface
- ISUP5.0, ISAPI
Display
Screen size2.4-inch
Resolution320 × 240
TypeLCD-TFT display screen
Audio
Audio output1 loudspeaker, 1 buzzer
Network
Wired networkTCP/IP, 10/100Mbps, self-adaptive
Wi-FiSupport
Interface
Network interface1
RS-4851
Wiegand1
Lock control1
Exit button1
Door contact input1
Alarm input1
Alarm output1
TAMPER1
USB1
Capacity
Card capacity3000
Fingerprint capacity3000
Event capacity100,000
Authentication
Card typeM1 card
Card reading distance0 to 4.5 cm
Card reading duration＜ 1 s
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1 and 1:N
Fingerprint recognition duration＜ 1 s
General
IndicatorPower/status (red/green)
Power supply12 VDC/1 A
Working temperature-10 °C to +55 °C (14 °F to +131 °F)
Working humidity10% to 90% (no condensing)
ColorBlack (included), gold (optional), silver (optional), white (optional)
Dimensions205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
InstallationSurface mounting
LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
