Hikvision 7Kw Smart EV Charger DS-TMP102-A1

Name: Hikvision 7Kw Smart EV Charger DS-TMP102-A1
Brand: Hikvision
SKU: 30382
Price: 105000.00 PKR
Availability: InStock

Original price was: ₨ 118,000.00.Current price is: ₨ 105,000.00.

Model: DS-TMP102-A1 (7KW)(EU)

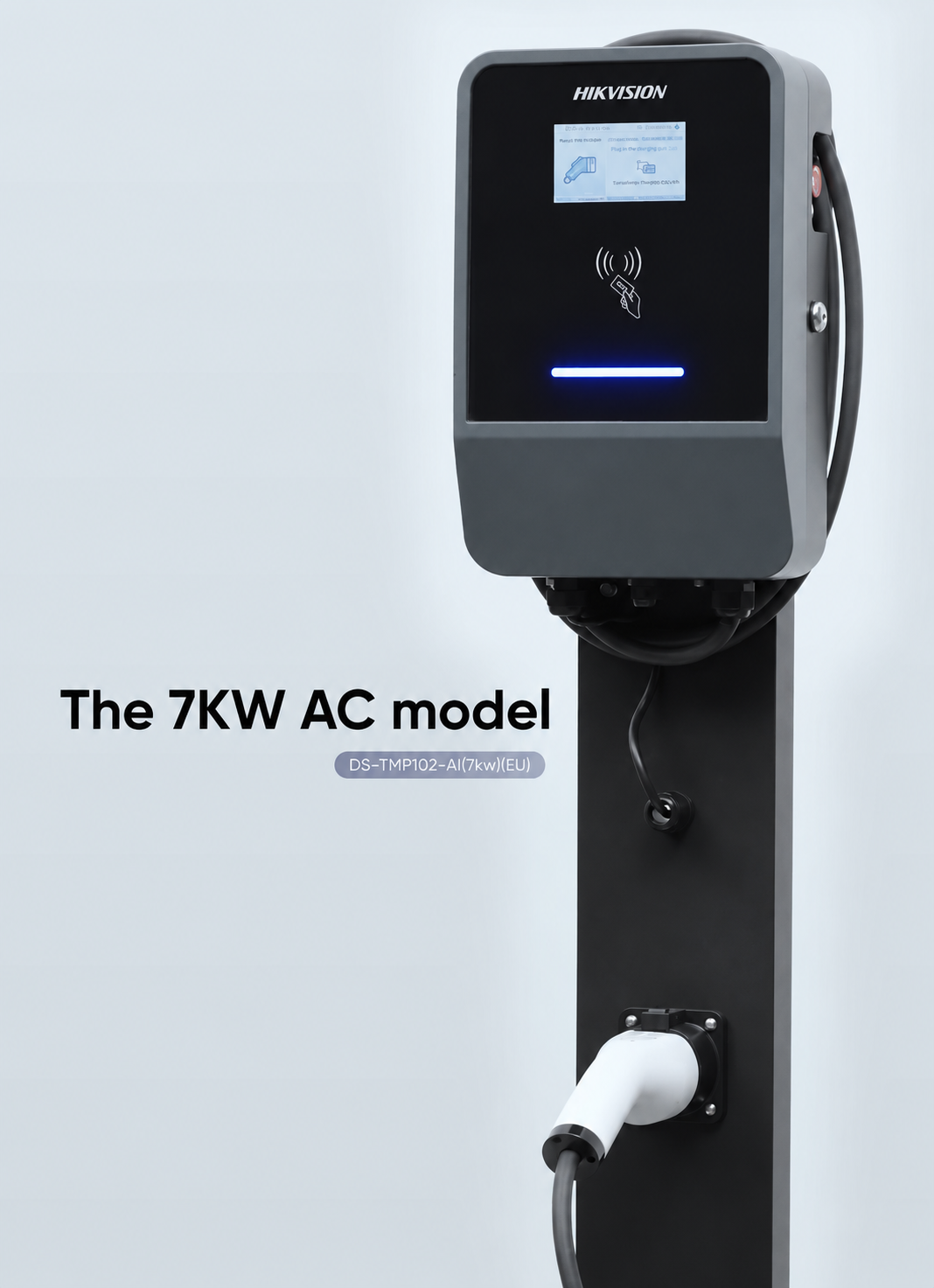

The Hikvision DS-TMP102-A1(7kw)(EU) is a wall or pole-mounted smart AC charger designed for residential and commercial use. Delivering a maximum output of 7kW, it features robust build quality and multiple connectivity options for reliable EV charging.

Model NumberDS-TMP102-A1(7kW)(EU)

Power SupplyAC 1-Phase (L + N + PE)

Rated Voltage / Current230V AC (±15%) / Max 32A Output

Charging Output7.0 kW Max (6A–32A Adjustable)

Cable Plug StandardType 2 EV Plug (IEC 62196) / 5m Length

Enclosure RatingIP55 Weatherproof / IK10 Vandal-Proof

UI Displays4.3″ LCD Screen + Multi-Color LED Indicator Array

Operational ProtocolsCompliant with IEC 61851-1 Communication Standard

Add to compare

Add to wishlist

Size and packaging guidelines

Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.

Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.

Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.

Specification	Chair	Armchair	Sofas
Height	37"	42"	42"
Width	26.5"	32.5"	142"
Depth	19.5"	22.5"	24.5"
Assembly Required	No	No	Yes
Packaging Type	Box	Box	Box
Package Weight	55 lbs.	64 lbs.	180 lbs.
Packaging Dimensions	27" x 26" x 39"	45" x 35" x 24"	46" x 142" x 25"

Category: Accessories

Description

Core Functionality & Charging Performance

- 7kW Power Delivery: Operates on standard European single-phase power (230V AC ±15%), delivering up to 32A of adjustable current (ranging from 6A to 32A) to accommodate different vehicle capabilities and home electrical panel limits.
- Broad EV Compatibility: Equipped with a 5-meter premium charging cable paired with a universal EU Type 2 connector (IEC 62196), ensuring seamless charging for nearly all modern European electric vehicles and plug-in hybrids.
- Efficient Throughput: Capable of restoring roughly 49 km of driving range per hour of charge. A standard 60 kWh EV battery can go from empty to fully charged in approximately 8.5 hours.

Hardware & Industrial Design

Vandal-Proof Robot Metal Housing: Unlike budget plastic alternatives, the charger features a rugged robot metal housing. It carries an IK10 impact rating to resist physical tampering, vandalism, and harsh impact.
All-Weather Resilience: Certified with an IP55 dust and water-resistance rating, the station can be safely installed outdoors under heavy rain, snow, or blowing dust.
Dual Installation Form Factors: Designed for versatile deployment. It can be space-efficiently wall-mounted next to a driveway or attached to a standalone floor pillar/pole mount for commercial parking slots.
Intelligent Operator Interface: Outfitted with a bright 4.3-inch LCD screen alongside clear, dynamic LED status indicators. The visual display guides users through their charging metrics, session time, real-time power draws, and system faults.

Smart Ecosystem & Connectivity

- - - Plug & Play: Ideal for secure, private home garages.
    - RFID Card Reader: Restricts access to authorized users via physical RFID cards, making it perfect for shared residential complexes or corporate workplace parking.
    - App-Based Activation: Allows users to initiate charging via software commands.Flexible Authentication: Offers three distinct operation profiles:
- Wireless Protocols: Built-in Wi-Fi and Bluetooth antennas facilitate over-the-air firmware updates and quick synchronization with smartphones.
- Hik-Charging Companion App: Enables users to remotely track live charging metrics, review historical consumption charts, and program smart charging schedules. “7kW with smart HikCharging App-based scheduling.” (Hikvision) This allows owners to align charging intervals with cheaper off-peak electricity tariffs to save on utility bills.
- Dynamic Load Balancing (DLB): Actively balances power draw against live household electricity use, protecting the property’s main breaker from tripping when heavy appliances are turned on.

Commercial-Grade Safety Standards

The charger employs a comprehensive 15-layer multi-tier protection suite to safeguard the vehicle’s battery pack, the station itself, and the building’s electrical architecture:

Electrical Fail-Safes: Full protection against over-voltage, under-voltage, over-current, short-circuits, surge transients, and electrical leaks.
Built-in DC 6mA RCD: Features a dedicated integrated residual current device (RCD) to safely interrupt faults without needing expensive external Type B RCD installations.
Integrated PEN Protection: Ensures maximum user protection against upstream neutral wire breaks, completely eliminating the need to drive specialized earth ground rods into the soil during installation.
Thermal Control & Emergency Stop: Includes continuous over-temperature internal monitoring paired with a prominent physical Emergency Stop Button on the side of the unit to instantly kill power during an incident.
