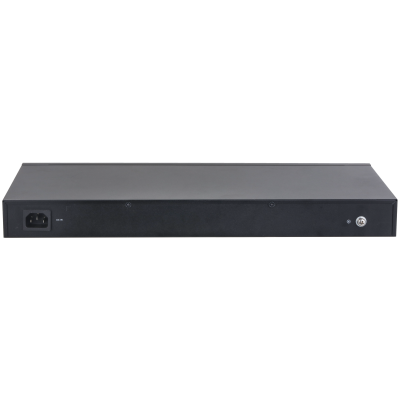

Dahua 20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE
Original price was: ₨ 49,400.00.₨ 48,500.00Current price is: ₨ 48,500.00.
Model: CS4220-16GT-135
> Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Description
Specifications:
| Hardware | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Included Power Adapter | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port Speed | 10/100/1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port Speed | 1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port Uplink Speed | 10/100/1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port Uplink Speed | 1 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description of Function Slots | Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 19-20: 2 ×SFP 1000 Mbps (uplink) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reset Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | Built-in power supply: 100-240 VDC, 47-63 Hz, max 3 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 5%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Humidity | 5%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Idling: ≤8.3 W ; Full load: 154 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Layer | Layer 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Type | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
