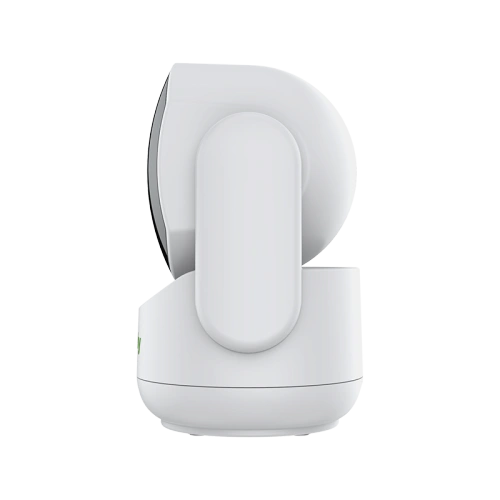

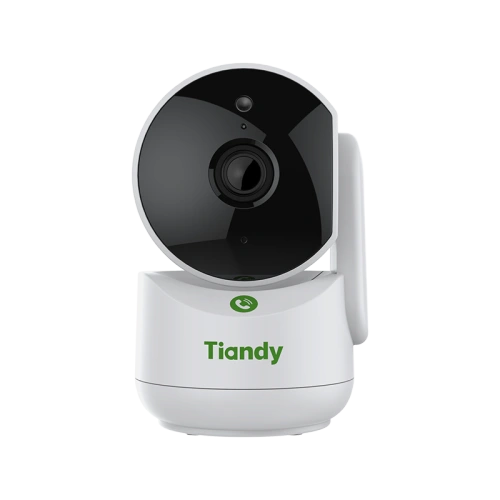

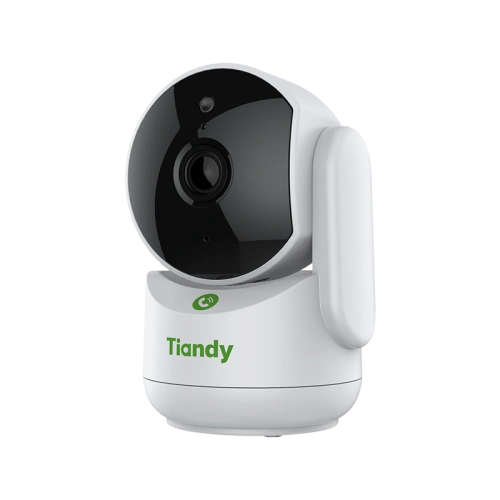

Tiandy 3MP Fixed Color Maker Wi-Fi PT Camera
Original price was: ₨ 8,200.00.₨ 7,500.00Current price is: ₨ 7,500.00.
The Tiandy TC-H332A is a 3MP Color Maker fixed Wi-Fi PT camera with a fixed 4mm lens, offering up to 3MP resolution at 20fps. It features S+265/H.265 video compression, a 15m IR range, built-in mic/speaker for two-way audio, and supports microSD cards up to 512GB for local storage. The camera has a pan-tilt function for remote control, smart alerts, and auto-tracking capabilities.
Key Specifications
Resolution:3MP (2304×1296) at 20fps
Video Compression:S+265/H.265/H.264
Lens:Fixed 4mm lens
Night Vision:IR range up to 15 meters
Audio:Built-in microphone and speaker
Pan/Tilt:350° pan / 180° tilt for remote control
Storage:Supports microSD/microSDHC/microSDXC cards up to 512GB
Connectivity:Dual-band Wi-Fi (2.4 GHz)
Intelligent Features:Color Maker low-light imaging, smart alerts, and auto-tracking
Power:DC 5V ±25%, Max. 7W
APP/Software:EasyLive Plus (Mobile), Easy7 VMS (PC)
Product Description
| Camera | |
| Image Sensor | 1/3″CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto Switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0~350°(P); -90~90°(T) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 82.5°(H); 44°(V); 97.8°(D) |
| DORI Distance | Detect:65.31m Observe:25.92m Recognize:13.06m Identify:6.53m |
| Pan&Tilt | |
| Pan Speed | 45°/s |
| Tilt Speed | 30°/s |
| Preset | 255 |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 15m |
| Wavelength | 850nm |
| White LEDs | 1 |
| Whitelight Distance | 8m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution | 3MP,2304×1296@20fps |
| Main Stream | PAL: 20fps(2304×1296, 1920×1080, 1280×720, 704×576) NTSC: 20fps(2304×1296, 1920×1080, 1280×720, 704×480) |
| Sub Stream | PAL:20fps(704×576, 704×288, 352×288, 640×360) NTSC:20fps(704×480, 704×240, 352×240, 640×360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
| Network | |
| Protocols | TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Moblie Client | EasyLive Plus |
| Wi-Fi | |
| Transmission Distance | Up tp 30m( based on actual environment) |
| Wireless Standard | IEEE802.11b/ 802.11g/802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
| Interface | |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB |
| General | |
| Operating Temperature | -10℃-45℃(14℉~113℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -10℃-45℃(14℉~113℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC5V±25%,Max. 7W |
| Protection | Surge500V; ESD6000V |
| Boundary Dimensions | 74(L)74(W)118(H)mm |
| Package Dimensions | 97(L)97(W)165(H)mm |
| GrossWeight | 0.38Kg |
